    Reliable Access Control Flap Barrier Gate

    Ask Lasest Price
    Brand Name : WEJOIN
    Model Number : WJTY202
    Certification : CE,RoHS
    Payment Terms : T/T, Western Union
    • Product Details
    • Company Profile

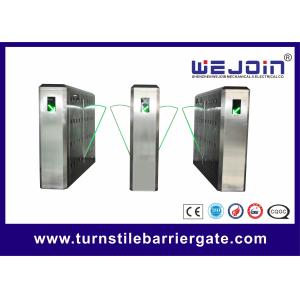

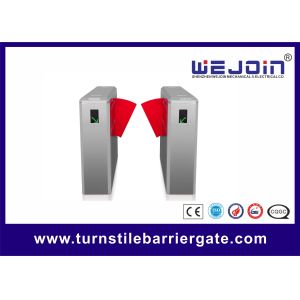

    Reliable Access Control Flap Barrier Gate

    Reliable Access Control Flap Barrier Gate


    Flap Barrier gate Quick Introduction:

    1.Motor voltage DC12V (brush motor)

    2.Working temperature -25°C~50°C

    3.Material: 304 stainless steel

    4.Function: automatic

    5.Direction: bi-direction

    6.Power supply AC220V±15%, AC110V±15%


    Flap Barrier gate Features

    1. Flap auto reversing when meeting exterior force.

    2. Operational mode can be set up through the built-in menu on the control board.

    3. Audible and visual alarm in case of unauthorized access.

    4. Auti-collision function, the flap will stay close if not receiving the open signal.

    5. RS232 and LAN sockets are available to connect the computer.

    6. The design is of integration of machinery and electronic structure, with special drive style and reliable

    machinery auto locking solution, precise worm gear, and cabinet composite structure.

    7. Malfunction self-detection. Which is easy for operation and maintenance.

    ​8. Flap work synchronously.

    9. Available for two-way traffic lights, which can prompt the state---pass or no-entry.

    10.Auto reset function, after the flap open if no pedestrian passes in a fixed time, the system will cancel the order and the auto-reset time is adjustable.

    11. Flaps open when power off, and auto-close when power on.

    12. Compatible with diverse access control devices.


    Model

    WJTY201

    Stretching-out flap length

    275mm

    The max lane width

    600mm

    Cabinet material

    Cold rolled steel & aluminum alloy

    Material of Flap Door

    Organic glass

    Housing of thickness

    1.5mm

    Normal Life Span

    3 millions times

    Communication Interface

    Standard RS485(distance less than 1200 meters)

    Transit speed

    30-40 persons/min

    Time for opening or closing

    0.5s

    Starting time after power on

    3s

    Input interface

    Dry contact signal or +12Vor pulse signal with width more than100ms DC12V

    Transit speed

    25~32 persons/min

    Working temperature

    -10°C~50°C

    Working environment

    Indoor / Outdoor (Shelter)

    Relative humidity

    ≤95%, no condensation


    Reliable Access Control Flap Barrier Gate
