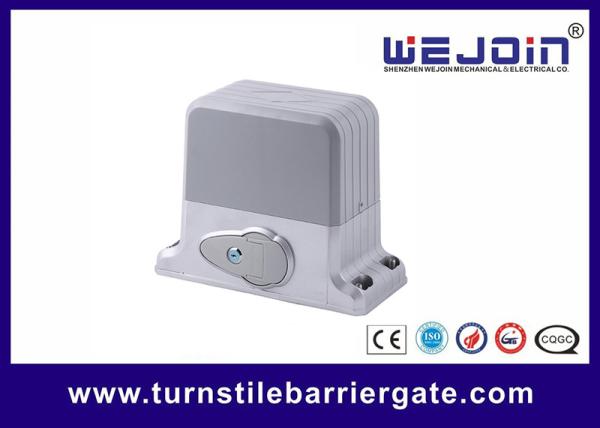

    Alarm Light Socket Sliding Gate Opener , Sliding Gate Door Motor Automatic Warm Up

    Ask Lasest Price
    Brand Name : WEJOIN
    Model Number : WJMP202
    Certification : CE,ISO,SGS
    Price : USD 150-200 SET
    Payment Terms : T/T, Western Union
    Supply Ability : 10000 set / month
    • Product Details
    • Company Profile

    Alarm Light Socket Sliding Gate Opener , Sliding Gate Door Motor Automatic Warm Up

    Alarm Light Socket Sliding Gate Opener , Sliding Gate Door Motor Automatic Warm Up


    Overview
    This is a conventional sliding gate operator, with brand-new design, brand-new clutch structure, fashionable exterior design and brand-new control technique, making the motor more humanistic.
    Furthermore, the integrated electromechanical design and the streamlined appearance also make our product look more fashionable and elegant.


    Functions

    1. Integrated electromechanical design
    2. Electronic soft start
    3. Reversing on obstacle
    4. Infrared photocell socket
    5. Alarm light socket
    6. Wires control and remote control
    7. Delay closing
    8. Reversing sensitivity adjustable
    9. Bus-mastering (various operation ways)
    10. Automatic warm-up


    Sliding Gate Motor Technical Data

    Model

    MP202

    Voltage

    220V±10%

    110V±10%

    Current

    2.7A

    5.8A

    Absorbed power

    594W

    638W

    Working temperature

    -35℃~+85℃

    Relative humidity

    ≤90%

    Remote control distance

    ≤50M

    Mode number

    M=4

    Gear Speed

    58.5rpm

    70.2rpm

    Torque

    35NM

    Max weight of gate

    1800kg

    Travel speed

    11m/min

    13.2m/min

    Reduction ratio

    23:1

    Overload protection temperature

    130℃


    Motor base and it's installation

    1. Motor base installation: set the installation position of the base tray according to the size of the motor and the height of the installation position of the gear rack. Then Embed the bolts in advanced or use the expansion bolts to embed the base into the cement foundation.
    2. If the gear rack has already been installed, fix the motor to th base and turn the clutch with the clutch key to the off position, then make the gear of the motor suit right to the gear rack, then the position of the base can be set. Take off the motor and fix the base.


    Motor installation
    1.Put the motor on the base, fix up the motor with hexangular screws.
    2.Loosen the four screws on the outer shell and remove the shell Connect the wire according to the electric diagram. After debugging, install the shell and fix it with bolts.
